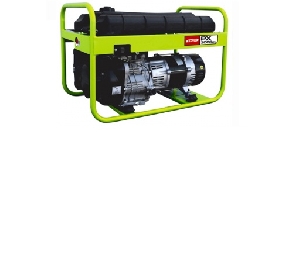

Generator monofazat Pramac PX 3000-Generatoare uz general

Cod producator: PC242SHI009
Compliancy certification CE
Standby power LTP 3,6 kW
Rated prime power (PRP) 2,5 kVA
Rated continuous power (COP) 2,27 kVA
Phases 1
Voltage 230 V
Frequency 50 Hz
Battery charger current n.a.
Single-phase maximum power (LTP) n.a.
Single-phase prime power (PRP) n.a.
Single-phase continuous power (COP) n.a.
Rated maximum power (LTP) 2,92 kVA
Rated current at COP 9,9 A
Rated power factor 0,9 PF
Battery charger voltage n.a.
Panel location On alternator
Frame type Tubular
Caracterisitici tehnice
Dimensional data
Length 622 mm
Width 408 mm
Height 500 mm
Dry weight 39 kg
Additional information
Fuel tank location On frame
Fuel tank capacity 11 l
Noise level at 7 m 69,7 dBA
Guaranteed noise level (LWA) 96 dBA
Skid mounting No
Automatic supplementary tank VV.FF.
No
Running time at 75% COP 9,93 h
Measured acoustic power (LWA) at 4 mt 94,7 dBA
Operating conditions n.a.
Scale specifications
Electric protection grade 23M
Electric equipments
Hourmeter No
Engine specifications
Engine manufacturer Mitsubishi
Model GT600PC
Stroke 4
Fuel Gasoline
Number of cylinders and disposition 1, inclination angle
Displacement 181 cm³

Air intake Natural
Starting system Recoil
Nominal operating speed 3000 rpm
Speed governor Mechanical
Continuous power COP 2,8 kW
Prime power PRP 3,1 kW
Lube oil capacity 0,6 l

Comanda produs Generator monofazat Pramac PX 3000
